User's Guide
I2S-001-ABCD
Factory-configured part number — four digits A, B, C, D after the base SKU (e.g. I2S-001-1101). Pinout, wiring, and factory options.
Document version · revised
Read our primers in a new tab alongside this guide: Learn overview, Understanding I2S Bus and Audio Isolation, and Understanding I2C Bus Isolation.
1. The board in 2 minutes

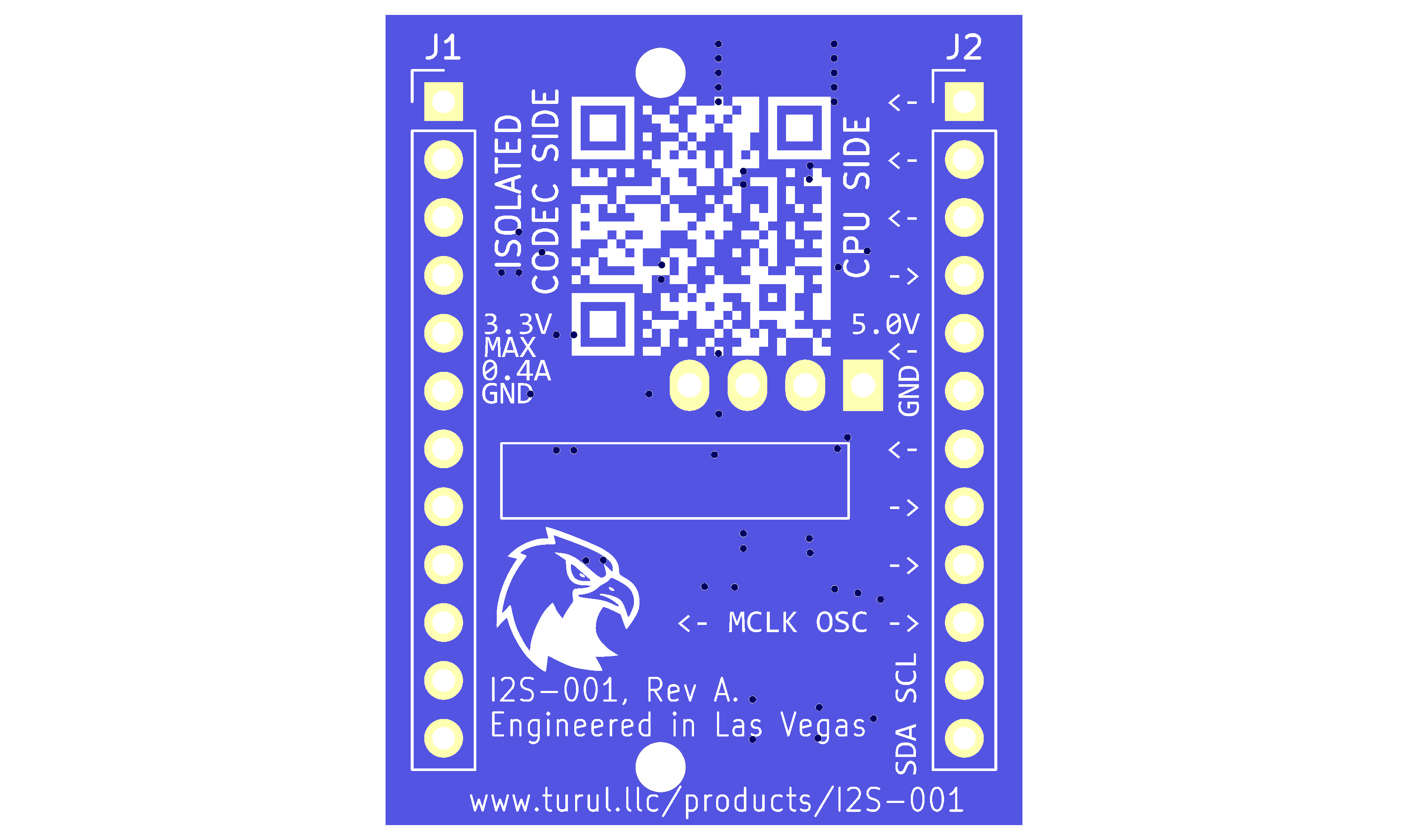

I2S-001 sits between your digital side and audio side. On the PCB, J2 faces the digital side (silkscreen may say CPU or NOISY) and J1 faces the audio / isolated side (codec). Each header exposes 12 pins on a 2.54 mm grid; pin n on J2 pairs with pin n on J1. Power is on pins 5–6.
The board routes I2S clocks and data (and optionally I²C and extra GPIO) through galvanic isolation so ground loops and digital switching noise on the processor side are less likely to show up as hum or buzz on the analog audio path. Some of the parts can survive a kilovolt-class isolation rating; the product was not designed for that. Keep both sides at roughly the same potential — the barrier is there so the supplies and the signal wires do not carry noise across, not so you can stand off high voltage between domains.
If silkscreen on the board disagrees with this guide, this guide wins.
2. Pick your part number
Order the board as I2S-001-ABCD. Each digit is a factory option. The board is built to that code; you do not change A, B, C, or D after delivery. Example of the format: I2S-001-1101.
| Digit | 0 | 1 | 2 |
|---|---|---|---|
| A — power | You supply both sides | 3.3 V noisy in → isolated 3.3 V out | 5 V noisy in → isolated 3.3 V out |
| B — I2S channels | Base 3 + 1 on pins 1–4 | 4 + 4 on pins 1–4 and 7–10 | — |
| C — pin 10 | Your signal (GPIO, external MCLK, …) | On-board 12.288 MHz on pin 10 of both headers | — |
| D — I²C isolator | No I²C on the board | SDA / SCL on pins 11–12 | — |
Digit C applies when B = 1 — a board with B = 0 and C ≠ 0 is not a product. Digit D is independent of A, B, and C. Combinations you can order are listed on the product page; for a special (another clock frequency, …) contact us from there.
Example part numbers
Three worked examples — the same as the wiring drawings later in this guide. Your part number comes from the table above, not from this list.
| Scenario | Part number |
|---|---|
| Minimal duplex, dual supply | I2S-001-0000 |

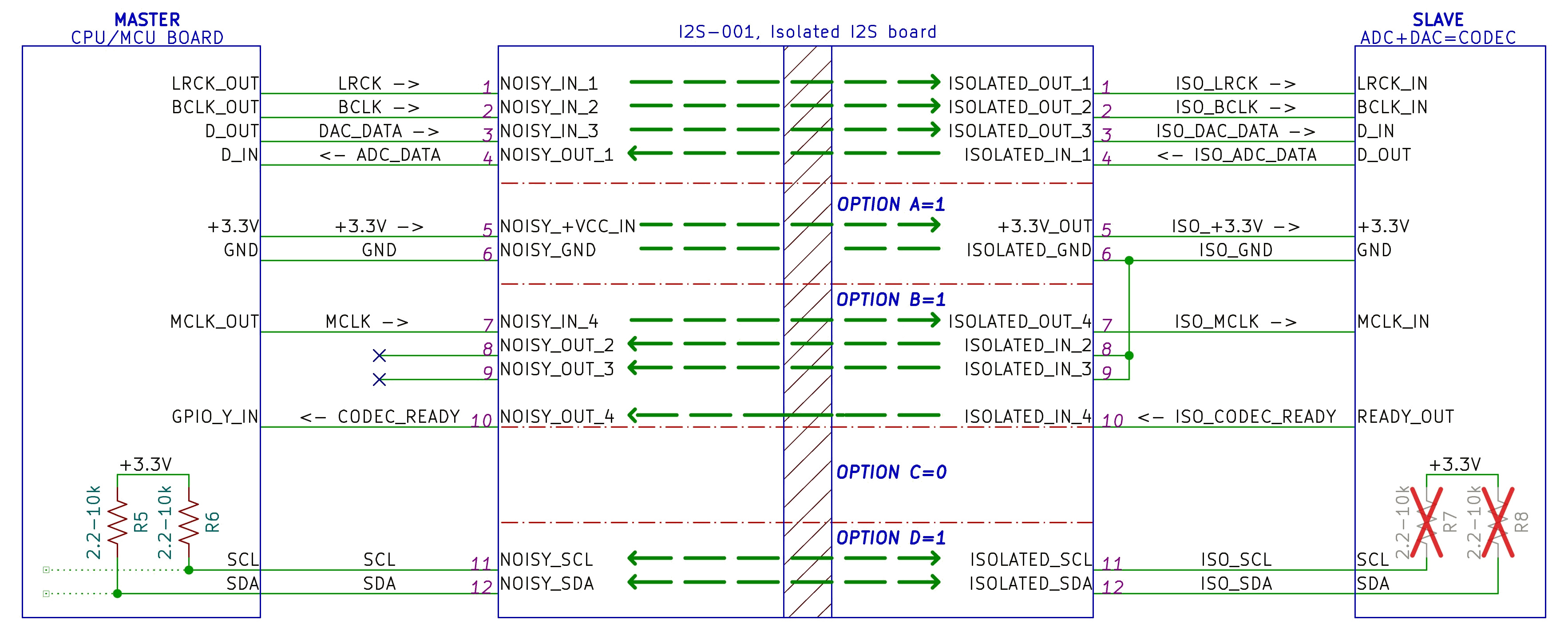

| Full passthrough + I²C + external MCLK, 3.3 V in | I2S-001-1101 |

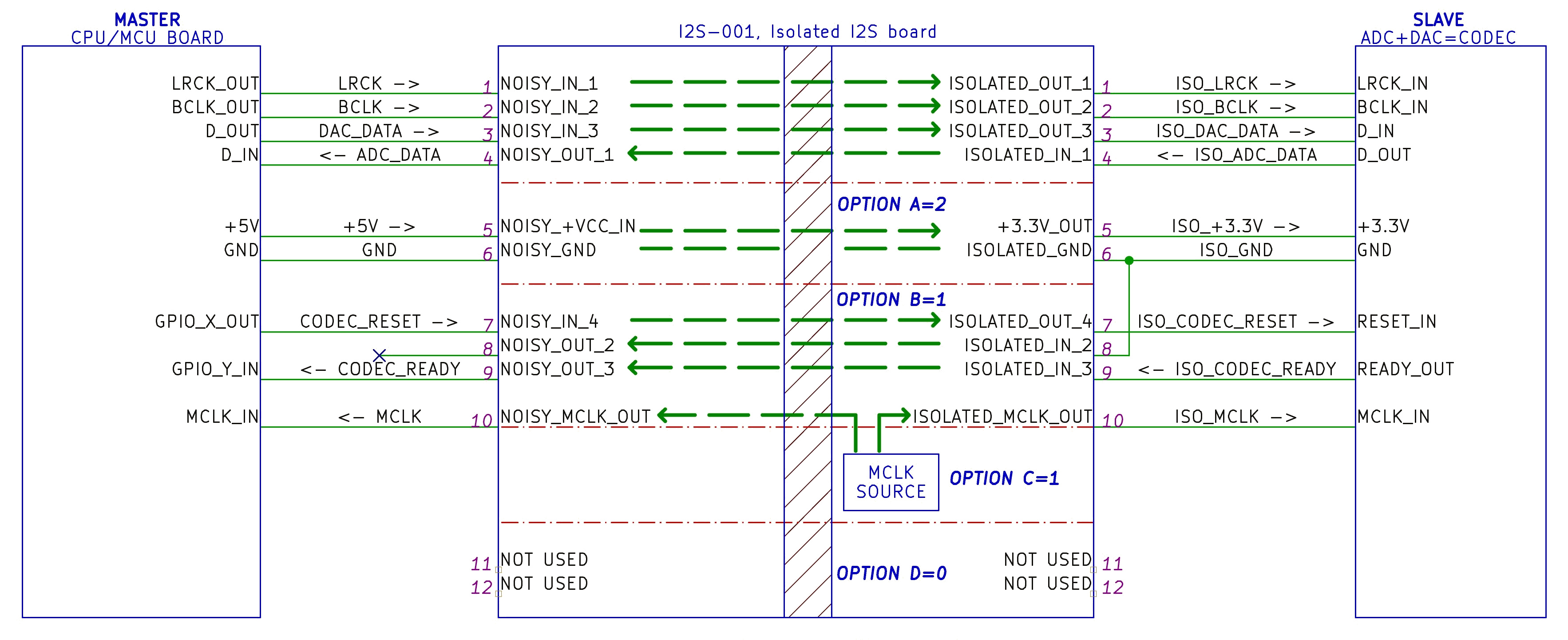

| On-board 12.288 MHz, 5 V in, no I²C | I2S-001-2110 |
3. Power
Pins 5–6 on each header are that domain’s supply. Logic level on a side equals that side’s I/O rail — there is no “5 V in, 3.3 V logic” mode. The board level-shifts between domains when the two rails differ.
| A | 0 | 1 | 2 |
|---|---|---|---|
| Meaning | You supply both sides | 3.3 V on noisy pin 5 → isolated 3.3 V out | 5 V on noisy pin 5 → isolated 3.3 V out |

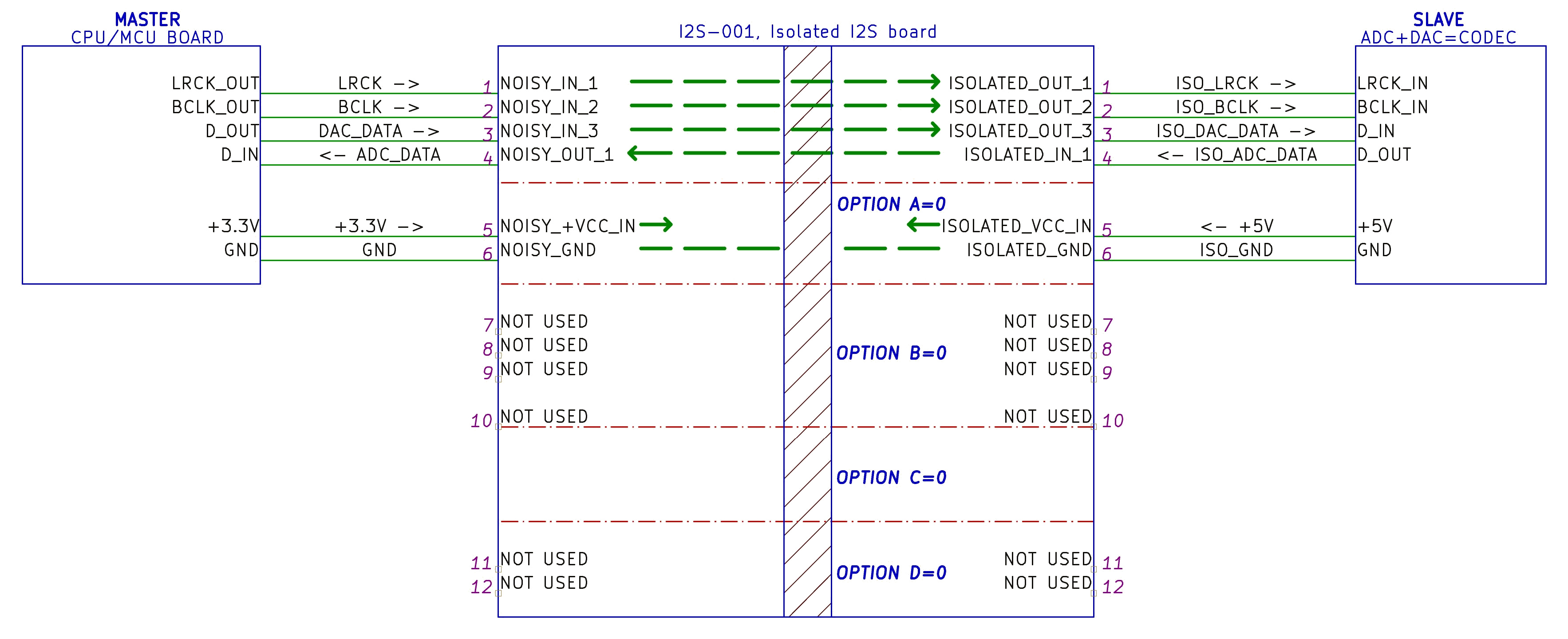

A = 0: power J2 (noisy) and J1 (isolated) from separate regulators. Each side may be 3.3 V or 5 V. Figure 16 is that case: 3.3 V on the CPU / noisy side and 5 V on the codec / isolated side.
A = 1 or 2: the board generates isolated 3.3 V on pin 5 of J1 — that pin is an output. Do not feed it from the codec supply, and do not parallel the two domains. Isolated I/O stays 3.3 V. How much current that rail can supply is in §8 (when published). If the codec needs more current than the board can give, power the codec from its own regulator: keep the two VCC nets separate, keep ISO_GND common with the codec ground (still not across the barrier). Isolated I/O must still be 3.3 V. In that situation A = 0 is the better order — you are already bringing a second supply. 5 V isolated logic also needs A = 0.
4. I2S channels
Count I2S wires between the digital side and the audio side — clocks, data, and any extra GPIO you send through the I2S isolator. Omit power, ground, and I²C (SDA / SCL are digit D, not this count). Split the count by direction:
- Toward audio — e.g. LRCK, BCLK, DAC data.
- Back toward digital — e.g. ADC data, or clocks when the converter is I2S master.
Direction examples (generic, not this board): Understanding I2S Bus and Audio Isolation, Figures 1–6.
Base capacity is 3 + 1 on pins 1–4. Digit B adds pins 7–10.
Base — pins 1–4 (every board)
| Direction | Channels | Pins |
|---|---|---|
| Toward audio | 3 | 1, 2, 3 |
| Back toward digital | 1 | 4 |
Assign any net to any pin in the same direction group. Do not swap groups. Typical MCU-master duplex (clocks + DAC data toward the converter, ADC data back) fits B = 0.
Digit B — extra I2S
| B | Toward audio | Back toward digital |
|---|---|---|
| 0 | Pins 1, 2, 3 | Pin 4 |
| 1, C = 0 | Pins 1, 2, 3, 7 | Pins 4, 8, 9, 10 |
| 1, C ≠ 0 | Pins 1, 2, 3, 7 | Pins 4, 8, 9; pin 10 = on-board reference clock on both headers (frequency from digit C) |
B = 1 when you need more than 3 + 1, or when the audio side is I2S clock master. With B = 0, pins 7–10 are not routed.
Digit C — pin 10
| C | 0 | 1 | 2, 3, … |
|---|---|---|---|
| Pin 10 | Your signal (GPIO, external MCLK, …) | On-board 12.288 MHz on pin 10 of both headers (noisy and isolated) | Other on-board frequencies on pin 10 of both headers — not offered yet |
Digit C applies when B = 1. When C ≠ 0, the reference clock is on pin 10 of J1 and J2.
5. I²C
Digit D is independent of A, B, and C. It only selects whether SDA / SCL cross the barrier.
| D | 0 | 1 |
|---|---|---|
| Meaning | No I²C path. Leave pins 11–12 unwired. | Isolated SDA / SCL on pins 11–12 |
D = 1: Fast Mode Plus (1 Mbit/s). Clock stretching is supported.
I²C isolation primer: Understanding I2C Bus Isolation.
Pull-ups
Each side of the barrier is its own I²C segment — pull-ups are required on both sides (on this board or on the MCU / codec board).

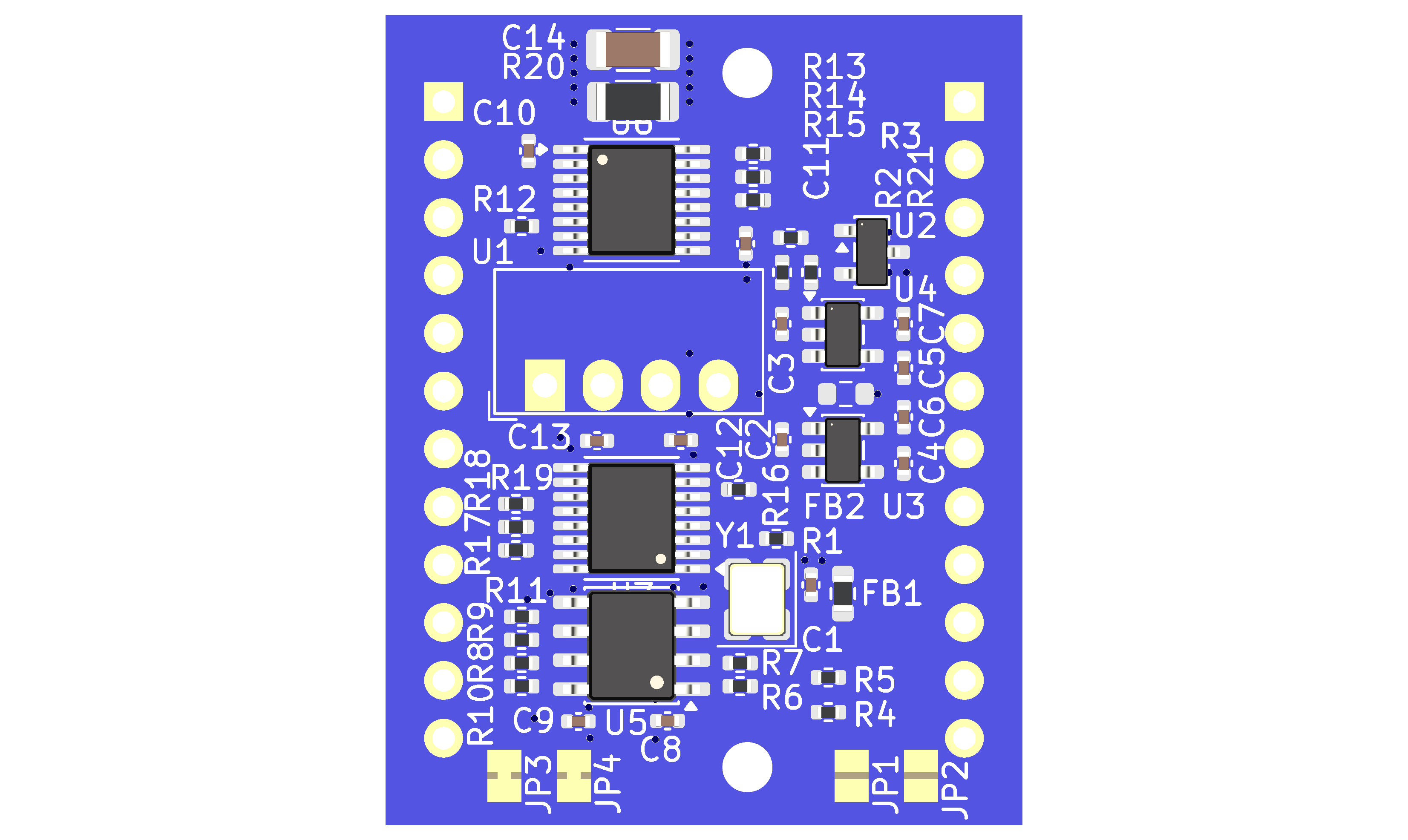

On-board 3.3 kΩ pull-ups use solder jumpers on the component side. Factory default: all open.
| Jumper | Net |
|---|---|
| JP1 | Isolated SDA |
| JP2 | Isolated SCL |
| JP3 | Noisy SDA |
| JP4 | Noisy SCL |
6. Pin map

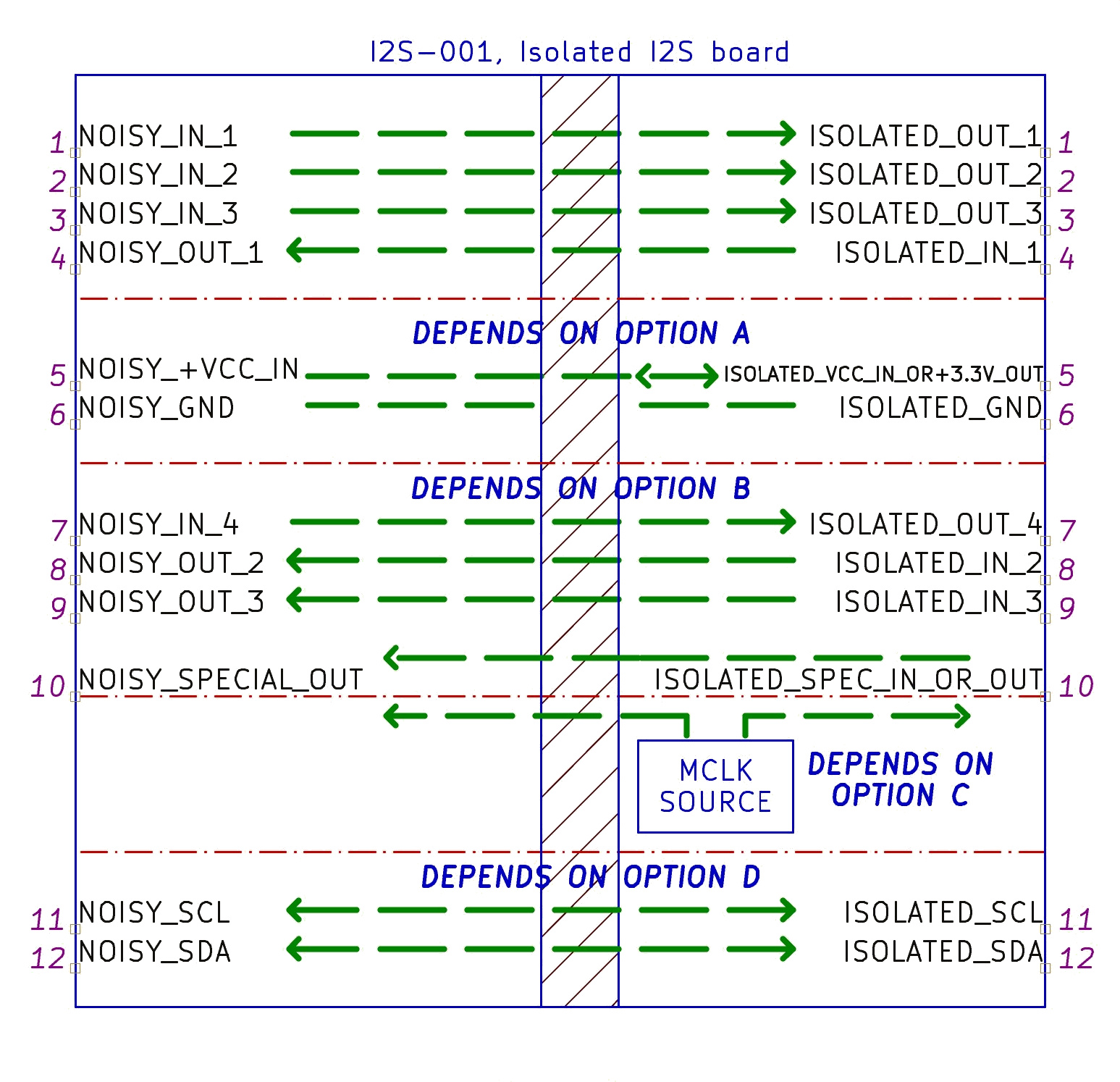

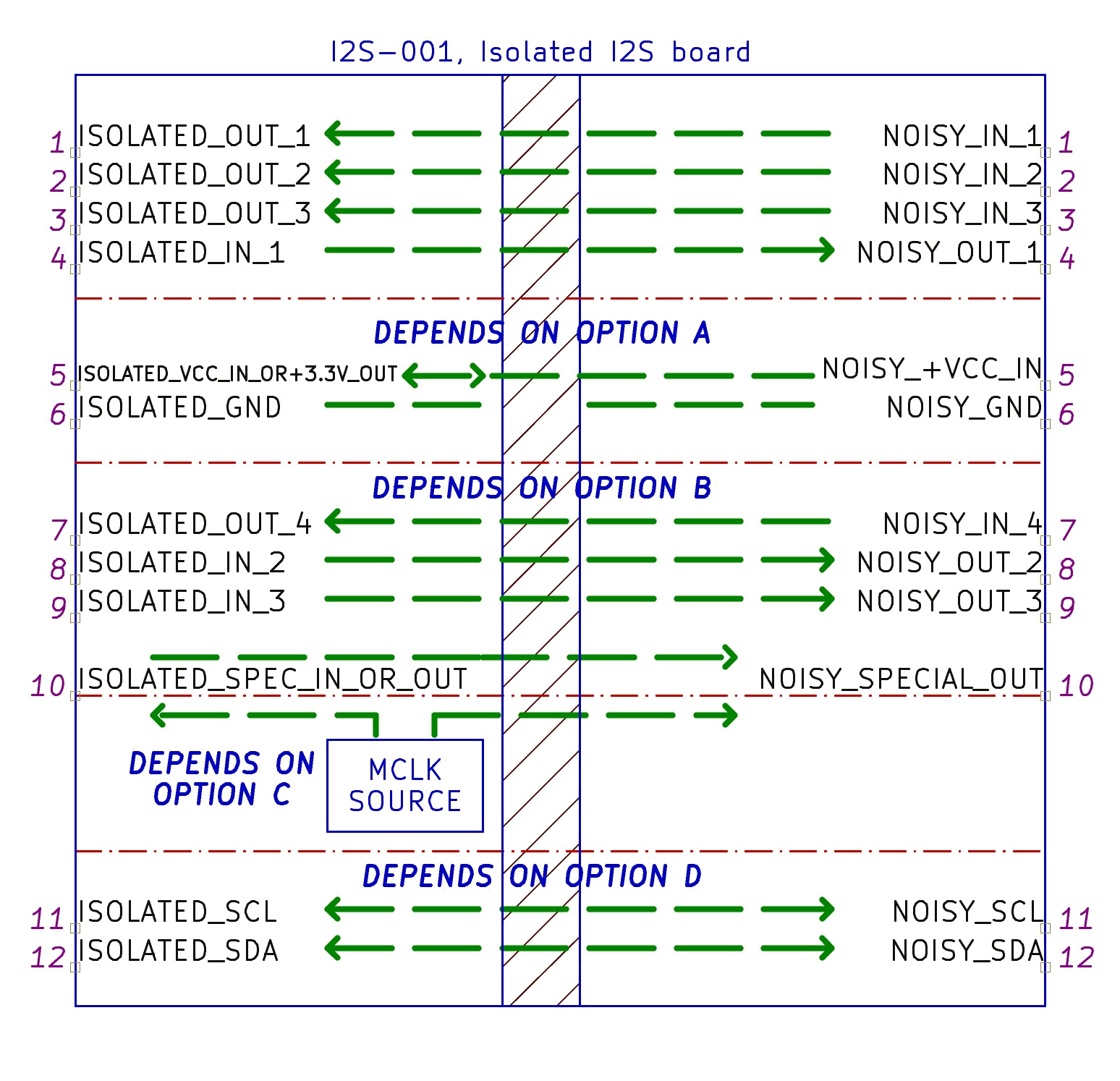

Pin n on J2 (noisy / digital) pairs with pin n on J1 (isolated / audio). Pin numbers on the drawing follow PCB layout (1–4, then 5–6 power, then 7–12) — not A/B/C/D order. Coloured bands mark factory options.
| Pin | Role |
|---|---|
| 1, 2, 3 | Toward audio — always |
| 4 | Back toward digital — always |
| 5 | VCC — noisy: supply input. Isolated: your supply (A = 0) or board 3.3 V out (A = 1 or 2) |
| 6 | GND of that header’s domain — do not join the two grounds |
| 7 | Toward audio when B = 1 |
| 8, 9 | Back toward digital when B = 1 |
| 10 | When B = 1 and C = 0: back toward digital (your signal). When C ≠ 0: on-board reference clock on both headers |
| 11 | SCL when D = 1 |
| 12 | SDA when D = 1 |
7. Wiring examples
Three worked examples. Signal-to-pin assignment in each drawing is one possibility — permute within direction groups as in §4. Your part number comes from §2.

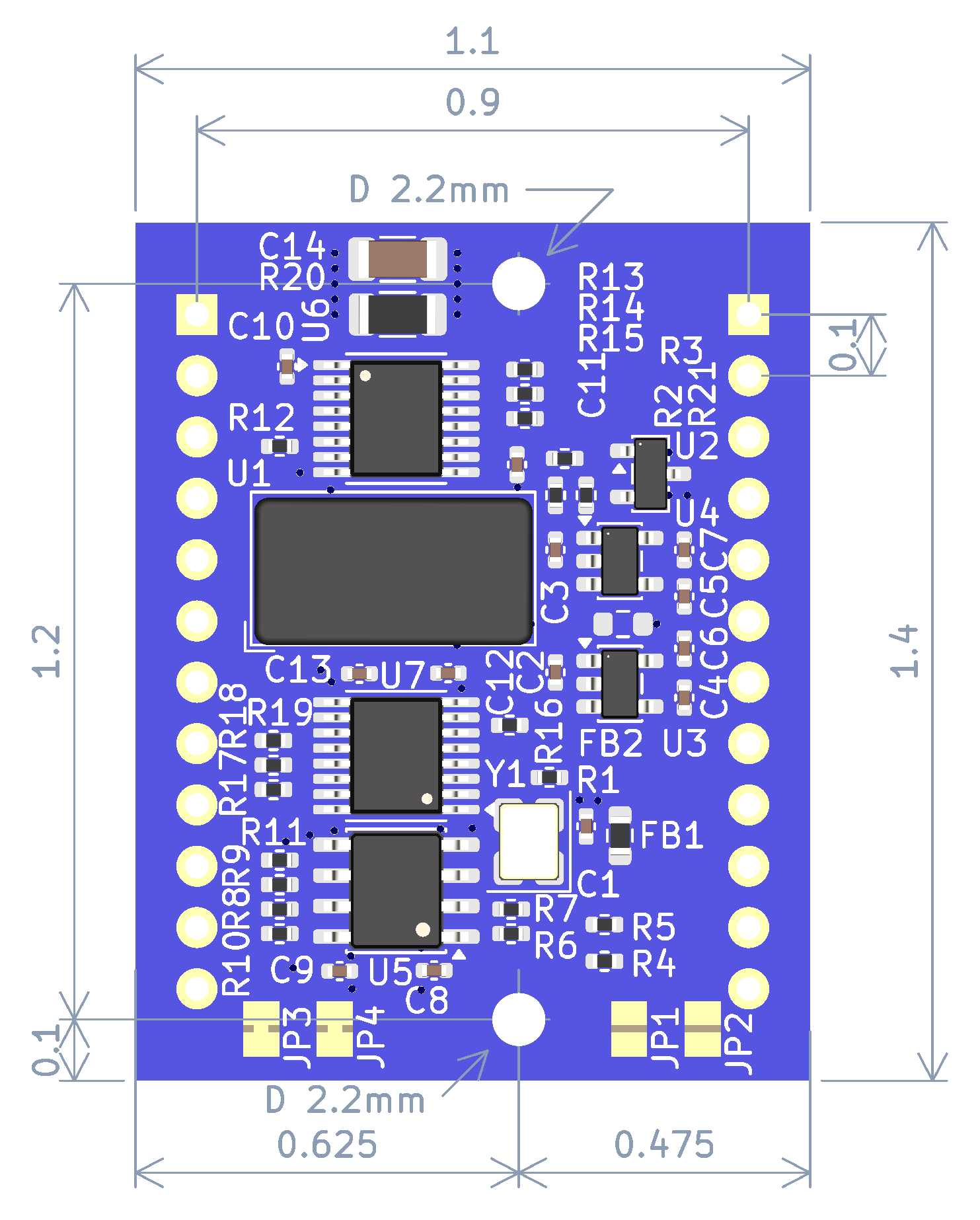

8. Dimensions & breadboard fit
| Callout | Meaning |
|---|---|
| 1.1 × 1.4 in 27.9 × 35.6 mm |
Board outline (drawing) |
| 0.1″ (2.54 mm) | Center-to-center between neighboring pins in a 12-pin column — standard breadboard pitch |
| 0.9″ | Center-to-center between the two header columns |
| D 2.2 mm | Mounting holes (two). Not on the board centerline — 0.625″ from the left edge, 0.475″ from the right |
| 1.6 mm (0.063 in) | PCB thickness — 2-layer FR4 |
| 15 mm (0.59 in) | Assembled height (PCBA) |
| 5 g (0.18 oz) | Weight — board only |
| 60 × 92 × 15 mm 2.36 × 3.62 × 0.59 in |
Factory ESD bag; 8 g with board |
Headers are on 2.54 mm (0.1″) pitch. Span the breadboard center gap with the long edge so J1 and J2 sit in opposite columns.
What’s in the bag
- The I2S-001 board.
- Two 1×12 male–male pin-header strips (2.54 mm / 0.1″) — not soldered. You choose length and orientation. If you cut a strip shorter, the board may rock on a breadboard. Other connector styles are on you.
- An adhesive label in the bag — part number, serial, factory-test mark, and a QR code. More fields may be added later.
- Resealable ESD bag.
Identification
The PCB has a silkscreen QR with no serial — it opens the product page. Shipping units get an adhesive label over that QR; the label QR includes the serial and opens this site with your unit (ordering options and factory test data). The bag label carries the same serial and the exact part number (I2S-001-ABCD).
Silkscreen on the board is not the specification. This guide is.
Electrical
- Logic level on a side equals that side’s I/O rail. The board level-shifts between domains.
- A = 1 or 2: isolated pin 5 is a 3.3 V output — do not feed it. Isolated-rail current capability will be listed here when measured.
- D = 1: I²C Fast Mode Plus (1 Mbit/s); clock stretching is supported.
- The board has no overvoltage protection.
- Isolation is for noise rejection with both sides at roughly the same potential — not a high-voltage barrier. A part’s kilovolt-class rating does not apply to the assembled product.
9. Support and warranty
Questions about part numbers or whether your topology fits? Contact links are on the product page.
Warranty does not cover a board destroyed by overvoltage. There is no on-board overvoltage protection — stay within the intended 3.3 V / 5 V rails in §3.
